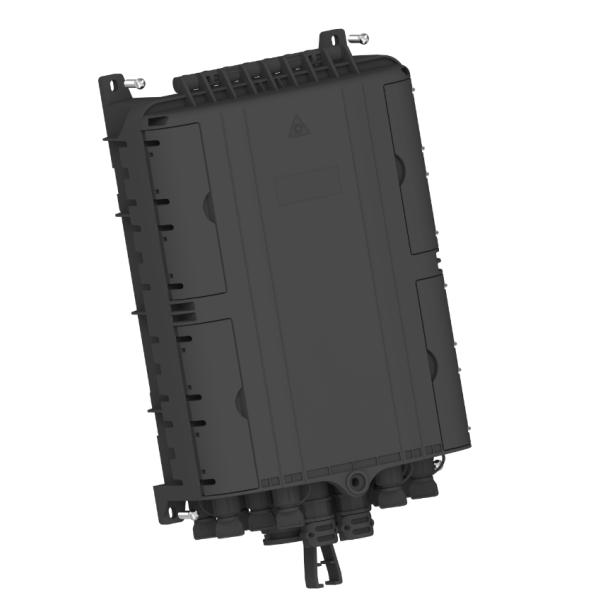

FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 30027095mm Size

Model Number : White Distribution box

Type : Optical Fiber Distribution Box

Place of Origin : China

Brand Name : OEM

Use : Fiber optic manufacture

Warranty Time : 1 year

Network : None

Wiring Devices : ODF

Certification : CE, ISO, RoHS, GS

Material : PC+ABS

Color : distribution box

Dimensions : 300*270*95mm

Temperature : -50 ~ +85

IP : IP55

Lock : Safe Shaped Lock

Transport Package : Carton

MOQ : 100 pieces

Price : $5.00/pieces 100-499 pieces

Contact Now

Products Description

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Specification

FTTH 8Cores Waterproof SC APC Adapter Splice Box Terminal Distribution Box in 300*270*95mm Size

Application

· Data transmission
· Telecommunication
· Testing equipment
· WBN
· Optical fiber CATV
· LAN indoor/outdoor

FEATURE

1. Total enclosed structure.

2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging,
protection level up to IP68.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter
installation, easy maintenance.

5.Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6.Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Technical Parameter:

1. Environmental requirement
Working temperature: -40ºC~+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 70KPa~106Kpa
2.Main technical datasheet Insertion loss: ≤0.15dB UPC return loss: ≥50dB APC return loss: ≥60dB
3.Thunder-proof technical datasheet The insulation resistance between the grounding device and the metal parts of the box is no
less than 2x104 MΩ/500V (DC); IR≥2x104 MΩ/500V.
4.The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

1. Wall-mounted installation

Drill 3 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten(Pic 4).

2.The overhead structure

Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.

3.Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole.

Details Images
